ASME B16.47 Series A Class 600 Blind Flange

In line with ASME standards, YANHAO offers B16.47 Series A Class 600 Blind Flange. The table below shows the exact sizes of the flanges. When YANHAO makes flanges, we make sure that they are exactly the right size according to the ASME standard. You can use these flanges in the oil and gas, petrochemical, and power generation industries.

We also offer custom services to meet the needs of customers who need different types of flanges and holes. Please don’t hesitate to get in touch with our professional team if you have specific technical or design needs. We will do our best to meet your needs.

Tags: ASME B16.47, Blind Flanges, Class 600, Series A
Send Inquiry
Download
Product Description

ASME B16.47 Series B Class 900 Blind Flange

ASME B16.47 Series A Class 600 Blind Flange​​​​​​​

Class 600 dimensions | ASME B16.47 Series A Flange

Nominal Pipe Size Outside Diameter (O) Bolt Circle (W) Raised Face Diameter (R) Number of Holes Diameter of Holes Minimum Thickness (T) Approximate Weight (lbs)
26 40.00 36.00 29.50 28 2.00 4.94 1760
28 42.25 38.00 31.50 28 2.12 5.19 2061
30 44.50 40.25 33.75 28 2.12 5.50 2423
32 47.00 42.50 36.00 28 2.38 5.81 2858
34 49.00 44.50 38.00 28 2.38 6.06 3237
36 51.75 47.00 40.25 28 2.62 6.38 3800
38 50.00 45.75 41.50 28 2.38 6.12 3405
40 52.00 47.75 43.75 32 2.38 6.38 3838
42 55.25 50.50 46.00 28 2.62 6.75 4585
44 57.25 52.50 48.25 32 2.62 7.00 5105
46 59.50 54.75 50.25 32 2.62 7.31 5758
48 62.75 57.50 52.50 32 2.88 7.69 6737
50 65.75 60.00 54.50 28 3.12 8.00 7695
52 67.75 62.00 56.50 32 3.12 8.25 8425
54 70.00 64.25 58.75 32 3.12 8.56 9333
56 73.00 66.75 60.75 32 3.38 8.88 10,530
58 75.00 68.75 63.00 32 3.38 9.12 11,414
60 78.50 71.75 65.25 28 3.62 9.56 13,108
  • All dimensions are in inches.
  • These flanges will be furnished with a 1/16″ raised face unless otherwise specified. For more alternate flange facings, please click here!

Blind Flange

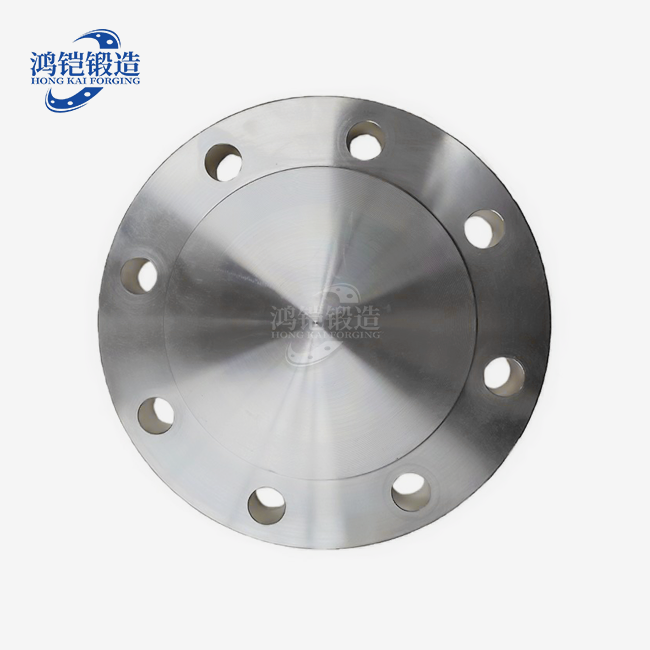

blind flanges

Blind flanges

‌A blind flange, also known as a blind plate, is a flange without main hole, used to close the end of a pipe system or as an end cover for equipment such as valves and pumps. ‌A blind flange has the functions of blocking the end of a pipe and facilitating the removal of debris from the pipe. Similar to the head and pipe cap, a blind flange can also serve as an isolation and cut-off function, but it has good sealing performance and is suitable for systems that require complete isolation‌.

The structure of a blind flange includes a round or square metal sheet, one side of which has a flange surface with an outer diameter and inner diameter matching the corresponding pipe size and with several bolt holes; the other side is a smooth sealing surface. When installed on the pipe, it is fixed to the adjacent flange by bolts and nuts to form a completely closed break‌.

ASME B16.47 FLANGE CLASSES

ASME B16.47 Series A

Welding Neck Flanges Blind Flanges
Class 150 Class 150
Class 300 Class 300
Class 400 Class 400
Class 600 Class 600
Class 900 Class 900

ASME B16.47 Series B

Welding Neck Flanges Blind Flanges
Class 75 Class 75
Class 150 Class 150
Class 300 Class 300
Class 400 Class 400
Class 600 Class 600
Class 900 Class 900
