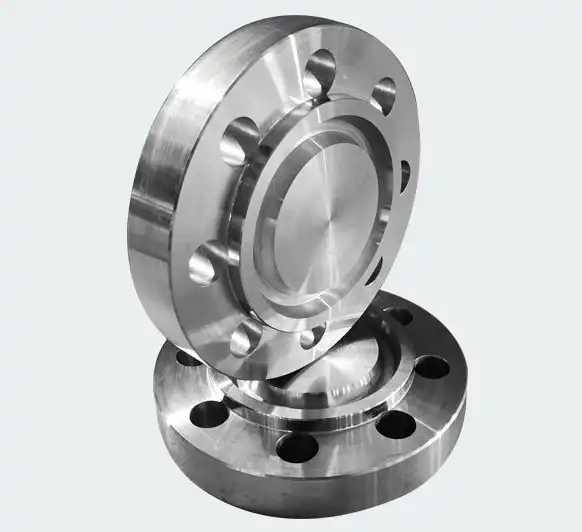

ASME B16.47 Series B Class 150 Blind Flanges
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Thickness: According to ASME B16.47 Series B Class 150
Standard: ASME B16.47 Series B
Pressure Class: Class 150
Flange Type: Blind Flange
Flange Face Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) upon request
Connection: Bolted Connection
Manufacturing Process: Forging and Machining
ASME B16.47 Series B Class 150 Blind Flanges are large-diameter forged closure flanges designed for industrial piping systems requiring reliable sealing, convenient isolation, and accurate dimensional control.
A Blind Flange has no central pipe opening and is mainly used to close pipeline ends or equipment connections. The bolted design allows it to be removed later for inspection, cleaning, pressure testing, maintenance, or future system modification.
These flanges are commonly used in oil and gas, petrochemical, and power generation industries. The reference page also notes that customized flange types and hole configurations can be supplied for specific technical requirements.

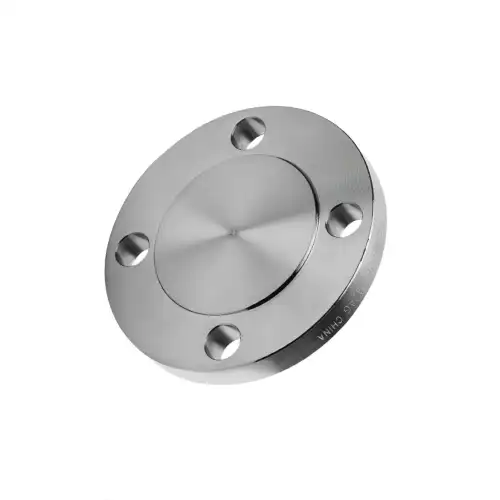

ASME B16.47 Series B Class 150 Blind Flange Descriptions
ASME B16.47 Series B Class 150 Blind Flanges are manufactured for large-diameter piping systems according to ASME B16.47 Series B dimensional requirements.
Unlike Welding Neck Flanges, Blind Flanges have no pipe bore. Their solid circular construction completely closes the pipeline or equipment opening.
The flange is installed against a matching flange using bolts, nuts, and a suitable gasket. This creates a secure but removable closure, making it convenient for system isolation, inspection, maintenance, and pressure testing.
Product Parameters
| Parameter | Description |
|---|---|
| Product Name | ASME B16.47 Series B Class 150 Blind Flange |
| Standard | ASME B16.47 Series B |
| Pressure Rating | Class 150 |
| Size Range | NPS 26" – NPS 60" |
| Flange Type | Blind Flange |
| Connection | Bolted Connection |
| Flange Facing | RF, FF, RTJ upon request |
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Manufacturing | Forging + Heat Treatment + CNC Machining |
| Surface Treatment | Anti-rust oil, painting, galvanizing or customized coating |
| Inspection | Dimensional Inspection, Visual Inspection, UT, MT, PMI, Hardness Testing |
| Application | Oil & Gas, Petrochemical, Power Generation, Chemical Processing and Industrial Pipelines |

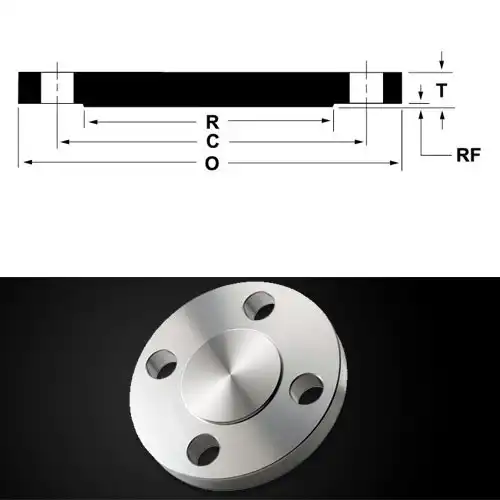

ASME B16.47 Series B Class 150 Blind Flange Dimensions
Class 150 Dimensions | ASME B16.47 Series B Flange
| Nominal Pipe Size | Outside Diameter (O) | Bolt Circle (W) | Raised Face Diameter (R) | Number of Holes | Diameter of Holes | Minimum Thickness (T) | Approximate Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 26 | 30.94 | 29.31 | 28.00 | 36 | 0.88 | 1.75 | 375 |
| 28 | 32.94 | 31.31 | 30.00 | 40 | 0.88 | 1.88 | 455 |
| 30 | 34.94 | 33.31 | 32.00 | 44 | 0.88 | 2.00 | 545 |
| 32 | 37.06 | 35.44 | 34.00 | 48 | 0.88 | 2.12 | 648 |
| 34 | 39.56 | 37.69 | 36.25 | 40 | 1.00 | 2.25 | 782 |
| 36 | 41.62 | 39.75 | 38.25 | 44 | 1.00 | 2.31 | 890 |
| 38 | 44.25 | 42.12 | 40.25 | 40 | 1.12 | 2.50 | 1090 |
| 40 | 46.25 | 44.12 | 42.50 | 44 | 1.12 | 2.62 | 1247 |
| 42 | 48.25 | 46.12 | 44.50 | 48 | 1.12 | 2.69 | 1393 |
| 44 | 50.25 | 48.12 | 46.50 | 52 | 1.12 | 2.81 | 1579 |
| 46 | 52.81 | 50.56 | 48.62 | 40 | 1.25 | 2.94 | 1825 |
| 48 | 54.81 | 52.56 | 50.75 | 44 | 1.25 | 3.06 | 2045 |
| 50 | 56.81 | 54.56 | 52.75 | 48 | 1.25 | 3.18 | 2284 |
| 52 | 58.81 | 56.56 | 54.75 | 52 | 1.25 | 3.31 | 2547 |
| 54 | 61.00 | 58.75 | 56.75 | 56 | 1.25 | 3.44 | 2848 |
| 56 | 63.00 | 60.75 | 58.75 | 60 | 1.25 | 3.56 | 3145 |
| 58 | 65.94 | 63.44 | 60.75 | 48 | 1.38 | 3.68 | 3560 |
| 60 | 67.94 | 65.44 | 63.00 | 52 | 1.38 | 3.81 | 3913 |
Notes:
- All dimensions are in inches.
- These flanges are furnished with a 1/16" Raised Face unless otherwise specified.
- Other flange facings and customized machining can be supplied according to customer requirements.

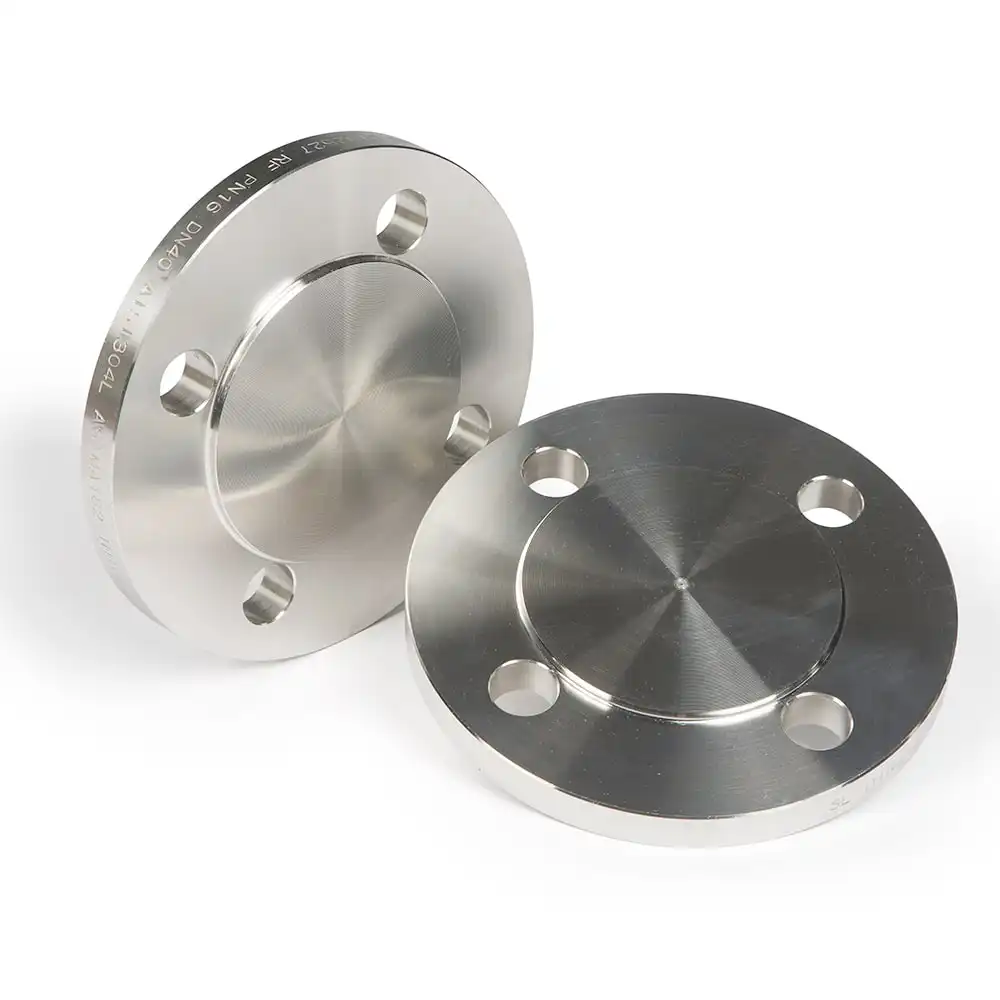

Blind Flange
A Blind Flange is a solid circular flange without a central pipe opening.
Its main purpose is to close the end of a pipeline or equipment connection and provide complete isolation.
Because the flange is bolted rather than permanently welded shut, it can be removed when access is required.
Typical functions include:
- Pipeline closure
- Equipment isolation
- Pressure testing
- Maintenance access
- Pipeline cleaning
- Future system expansion
ASME B16.47 FLANGE CLASSES
Choose The pressure class below
ASME B16.47 Series A
| Welding Neck Flanges | Blind Flanges |
|---|---|
| Class 150 | Class 150 |
| Class 300 | Class 300 |
| Class 400 | Class 400 |
| Class 600 | Class 600 |
| Class 900 | Class 900 |
ASME B16.47 Series B
| Welding Neck Flanges | Blind Flanges |
|---|---|
| Class 75 | Class 75 |
| Class 150 | Class 150 |
| Class 300 | Class 300 |
| Class 400 | Class 400 |
| Class 600 | Class 600 |
| Class 900 | Class 900 |
Advantages of ASME B16.47 Series B Class 150 Blind Flange
Reliable Pipeline Closure
The solid flange design provides complete closure for pipeline ends and equipment connections.
Easy Maintenance
The bolted structure allows the flange to be removed when inspection or maintenance is needed.
Reliable Sealing
Precision-machined sealing surfaces provide stable gasket contact.
Suitable for Large-Diameter Piping
Series B Class 150 Blind Flanges are suitable for large industrial piping systems from NPS 26" to NPS 60".
Multiple Material Options
Carbon steel, stainless steel, alloy steel, and duplex stainless steel are available.
Applications
Oil and Gas Industry
Used for large-diameter pipeline closure, isolation points, processing facilities, and equipment connections.
Petrochemical Industry
Suitable for process piping, tanks, pressure vessels, pumps, valves, and heat exchangers.
Power Generation
Applied in cooling water systems, process piping, and auxiliary pipeline systems.
Chemical Processing
Used to isolate pipelines carrying chemicals, gases, and industrial process media.
Water and Utility Systems
Suitable for large-diameter water systems, utility piping, and general industrial applications.
Industrial Piping
Used in machinery, pressure equipment, pumps, valves, and large industrial pipeline networks.

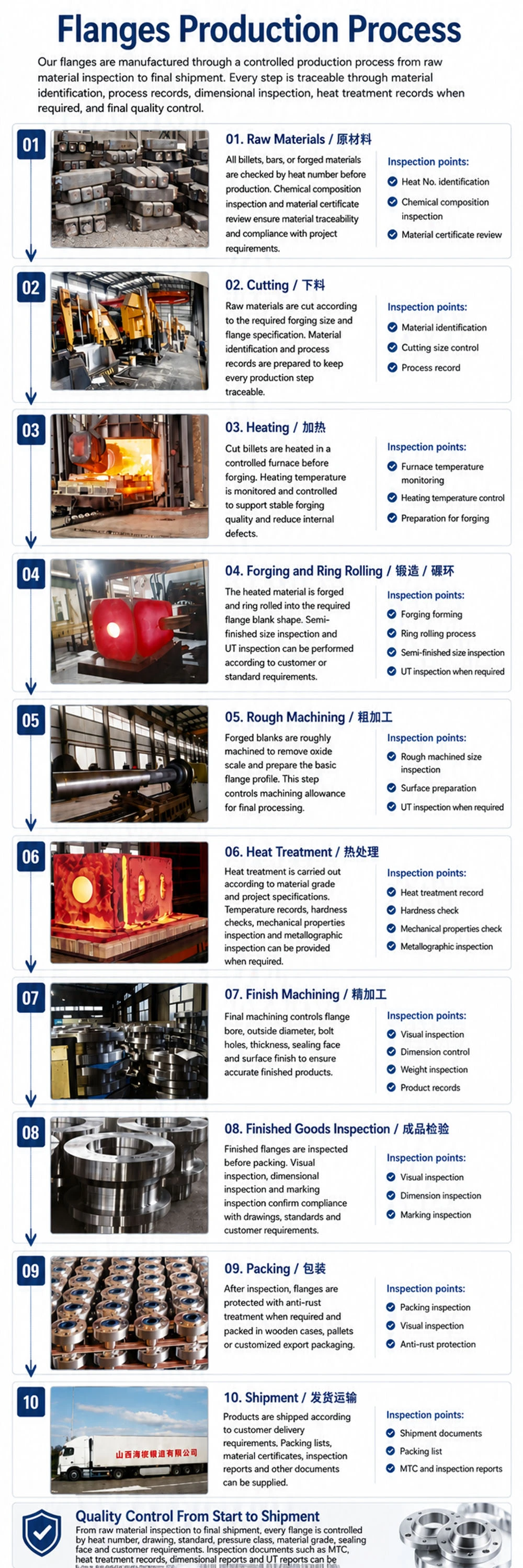

PRODUCTION PROCESS
Our ASME B16.47 Series B Class 150 Blind Flanges are manufactured through a controlled production process.
Raw Material Inspection → Cutting → Heating → Forging → Heat Treatment → Rough Machining → CNC Machining → Drilling → Sealing Face Machining → Inspection → Surface Treatment → Marking → Packing
Each stage is controlled to ensure accurate dimensions, correct bolt-hole arrangements, stable material properties, and reliable sealing surfaces.
Why Choose Us
Experienced Manufacturer
We specialize in forged flange manufacturing for industrial piping systems.
Reliable Quality
Each flange is inspected before shipment.
Multiple Material Options
Carbon steel, stainless steel, alloy steel, and duplex stainless steel are available.
Custom Manufacturing
Customized sizes, facings, coatings, and markings can be supplied.
International Supply
We supply flange products to customers in different industries and global markets.
COMPANY PROFILE
Shanxi HongKai Forging Co., Ltd. is located in Dingxiang County, Shanxi Province, China, an important manufacturing base for forged flanges.
We specialize in the production of forged flanges and industrial forging products for international piping and engineering projects.
Our manufacturing capabilities include:
Forging, Heat Treatment, CNC Machining, Drilling, Testing, Surface Treatment, Marking, Packaging and Shipment.
We manufacture Blind Flanges, Welding Neck Flanges, Slip On Flanges, Socket Weld Flanges, Threaded Flanges, Lap Joint Flanges, and customized forged flanges.
Our products can be supplied according to:
ASME / ANSI / EN / DIN / JIS / AWWA / BS and other international standards.
Available materials include carbon steel, stainless steel, alloy steel, duplex stainless steel, and special material grades.
FAQ
What is an ASME B16.47 Series B Class 150 Blind Flange?
It is a large-diameter solid flange without a central pipe opening, designed to close or isolate pipelines and equipment connections.
What sizes are available?
The reference dimensional table covers NPS 26" to NPS 60".
What does Class 150 mean?
Class 150 is an ASME pressure-temperature class designation. Actual allowable working pressure depends on material, temperature, gasket, bolting, and overall system design.
What materials are available?
Common materials include carbon steel, stainless steel, alloy steel, and duplex stainless steel.
What flange facing is normally supplied?
The reference page states that Class 150 Series B Blind Flanges are furnished with a 1/16" Raised Face unless otherwise specified.
What is a Blind Flange used for?
It is mainly used for pipeline closure, equipment isolation, pressure testing, maintenance access, and system shutdown.
Can customized Blind Flanges be manufactured?
Yes. The source page states that custom flange types and hole arrangements can be supplied according to customer technical or design needs.
Where are Series B Class 150 Blind Flanges commonly used?
The reference page specifically identifies oil and gas, petrochemical, and power generation applications.
Can inspection certificates be supplied?
Yes. Material certificates, dimensional inspection reports, UT, MT, PMI, hardness testing, and third-party inspection documentation can be supplied when required.
