Weld Neck Flange
/ Standard Forged Flanges

Weld Neck Flange

Our Supply Range
Dimensions: 1/2”, 2”, 3”, 4”, 6”, 8”, 10”, Customized  up to 60”
Material: Carbon, Alloy and Stainless Steel
Thickness: Schedule 10(S) to SCH 160
Standard: ASME, ANSI, DIN, JIS, EN etc
Class Range: Class 150 to 2500 (# or LB). PN 2.5 to PN 250.
Flange Face Type: RF, FF, MFM, TG, RJ
End: Bevel end
Connection: Butt weld
Manufacturing Process: Forging
Product Description
China Weld Neck Flanges Supplier

We provide flange products of various standards, such as ASME/ANSI B16.47,B16.5,EN,DIN,IS standards,etc.We also provide customized weld neck flange products.

we supportall ypes of flanges and can give you the best product quality at the most reasonable price.

Qucik Consultation
Customize Flanges
Wleding Neck Flanges Specitications

Standard

Type

Class

Size

ASME B16.5

WN/LWN/SO/Blind/Lap Joint

150#-2500#

1/2"-24"

ASME B16.47 Series A

WN/blind flange

150#-900#

22"-60"

ASME B16.47 Series B

WN/blind flange

75#400#600#

26"-60"

900#

26"-48"

EN1092-1:2002

Plate flange for welding/loose plate

PN2.5-PN100

DN10-DN4000

flange with weld-on plate collar or

for lapped pipe end/Blind/WN flange

JIS B2220

Welding Flange,Lap joint flange,threaded flange

PN6-PN100

DN10-DN1500

BS4504 BS10 TableD/E

Plate Flange for welding/WN flange/Blank Flange

PN6-PN100

DN10-DN1500

Sealing Surface

RF,FF,MFM,TG,RJ

Coating

Vanish,yellow paint,anti-rust oil,galvanizing etc

Wleding Neck Flange Materials & Grades

Weld neck flanges are available in a variety of materials.These materials must meet the standards.The material should also meet the

quality specified by ASTM or ASME standards.The thickness and inner diameter of the flange depend on the size of the pipe for which this weld neck flange is manufactured.



Carbon steel flanges are commonly used manufacturing materials for weld neck flanges.You can choose the appropriate material

according to the medium of the pipeline.You can choose ASTM A105 for normal temperature,ASTM A350 for low temperature,and ASTM A694 for high temperature.



Flanges are available in a variety of grades,such as ASME B165,ASME B1647"A”series and"B"series to meet the needs of customers and industries.

In addition to this material,weld neck flanges are also available in stainless steel and alloy steel,which have material properties such as

corrosion resistance,high temperature resistance,and wear resistance.At the same time,we also have duplex steel materials to meet the technical requirements of various pipelines of customers.The following table shows the grades of these common materials:

Material

Grade

Carbon Steel

ASTM A105. 20#. Q235. 16Mn. ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2,ASTMA694 F42, F46. F48. F50. F52,FSG. F60. F65.F70

Alloy Steel

ASTM A182F1,F5a,F9,F11,F12,F22,F91,A182F12,A182F11,16MnR,Cr5Mo,12Cr1MoV,15CrMo,12Cr2Mo1,

A335P22,St45.8/Ⅲ;

Stainless Steel

ASTM A182 F304,304L,F316,316L,1Cr18Ni9Ti,OCr18Ni9Ti,321,18-8;

Duplex and Super Duplex

ASTM/ASME A/SA 182 F44,F45,F51,F53,F55,F60,F61,

S31803,S32205,S32550,S31254,SMO254,S32750,S32760,S32950

Nickel Alloy Steel

ASTM/ASME B/SB151 UNS NO7060,71500,C70600 (CuNi 90/10),C71500(CuNi 70/30)

UNS N08825(INCOLOY 825),UNS N06600(INCONEL600),UNS N06601(INCONEL601),

UNS N06625(INCONEL625),UNS N10276(HASTELLOY C276)

ASTM/ASME B/SB151 UNS N07060,71500,C70600(CuNi 90/10),C71500(CuNi 70/30)

Copper Alloy

ASTM/ASME B/SB151 UNS NO7060,71500,C70600 (CuNi 90/10),C71500(CuNi 70/30)



Weld Neck/WN-RF Flanges Dimensions

Below we have listed some sizes of Weld Neck Flanges(Class 150)under ASME B16.5(1/2“to 24”)

Weld Neck Flange

  • 1/2”NPS weld neck flange has an inner diameter of  0.62”and an outer diameter of  3.50”.The raised face thicknessis 1.87” and has four bolt holes.
  • 314”NPS flange has an inner diameter of  0.82”and an outer diameter of 3.88”.The raised face thicknessis 2.06”with four bolt holes.
  • 1”NPS weld neck flange has an inner diameter of 1.05”and an outer diameter of   4.25”.The raised face thickness is 2.18”and  the standard bolt holes are four numbers.
  • 2”NPS    weld neck flange has an inner diameter of 2.07”and an outer diameter of 6.00”and a raised face thickness of 2.50”.The   5” NPS flange has an ID of  5.05”and an OD of 10.00”.The raised face thickness is 3.50”.
  • The 6”NPS flange has an ID of 6.07”and an OD of 11.00”.The raised face thickness is 3.50".and the standard bolt holes are eight numbers.
  • The 10"NPS flange has an ID of 10.02"and an OD of 16”.The raised face thickness is 4.00”".
  • The 20"NPS flange has an ID of 19.25"and an OD of 27.50".The raised face thickness is 5.68".
  • The 24”NPS weld neck flange has an ID of 23.25”and an OD of 32.00”.24”NPS weld neck flange has an inner diameter of 23.25”and an outer diameter of 32.00”.The raised face thickness is 6.00"and has 20 bolt holes.

                             ASME B16.5 Class 150 Flanges |Welding Neck



Standardized Weld Neck Flanges
  • Weld neck flange is commonly standardized as ASME B16.5 and ASME B16.47, with sizes ranging from 1/2 inch to 60 inch.
  • Sealing surface types include raised face(RF),flat face(FF),dimpled face(MFM),tongue and groove (TG),ring joint(RJ),and so on.
  • Applicable pressure classes include Class 75,150,300,400,600,900,1500,and 2500.

ASME B16.47 Series A

Welding Neck Flanges

ASME B16.47 Series B

Welding Neck Flanges

ASME B16.5

Welding Neck Flanges

\ Class 75 \
Class 150 Class 150 Class 150
Class 300 Class 300 Class 300
Class 400 Class 400 Class 400
Class 600 Class 600 Class 600
Class 900 Class 900 Class 900
\ \ Class 1500
\ \ Class 2500

ASME B16.47 Series A &Series B,ASME B16.5 Weld Neck Flanges Table

Customized Weld Neck Flanges Process


Raw Materials

Raw material inspection by heat number; Chemical composition inspection.

Cutting

Material identification; Production flow card.

Heating

Material identification; Furnace temperature monitoring; Heating temperature control.

Forging & Ring Rolling

Semi-finished size inspection; Visual inspection.

Rough Machining

Dimensional inspection; Ultrasonic Testing (UT).

Heat Treatment

Heat treatment records and charts; Furnace condition inspection; Hardness testing; Chemical composition and mechanical property inspection.

Finish Machining

Visual inspection; Dimensional inspection of 50% of products; Production flow card.

Finished Goods Inspection

Positive Material Identification (PMI); Marking inspection; Dimensional inspection.

Packing

Packaging inspection; Visual inspection.

Shipment

Shipment according to customer requireme

Customize It Now  Free Consulting

 More reading:

  • ASME B16.47:Differences Between Series A&Series B Flange
  • How We Make A Flange:Flange Manufacturing Process
  • Welding Neck Flange Bore Chart
Image Gallery

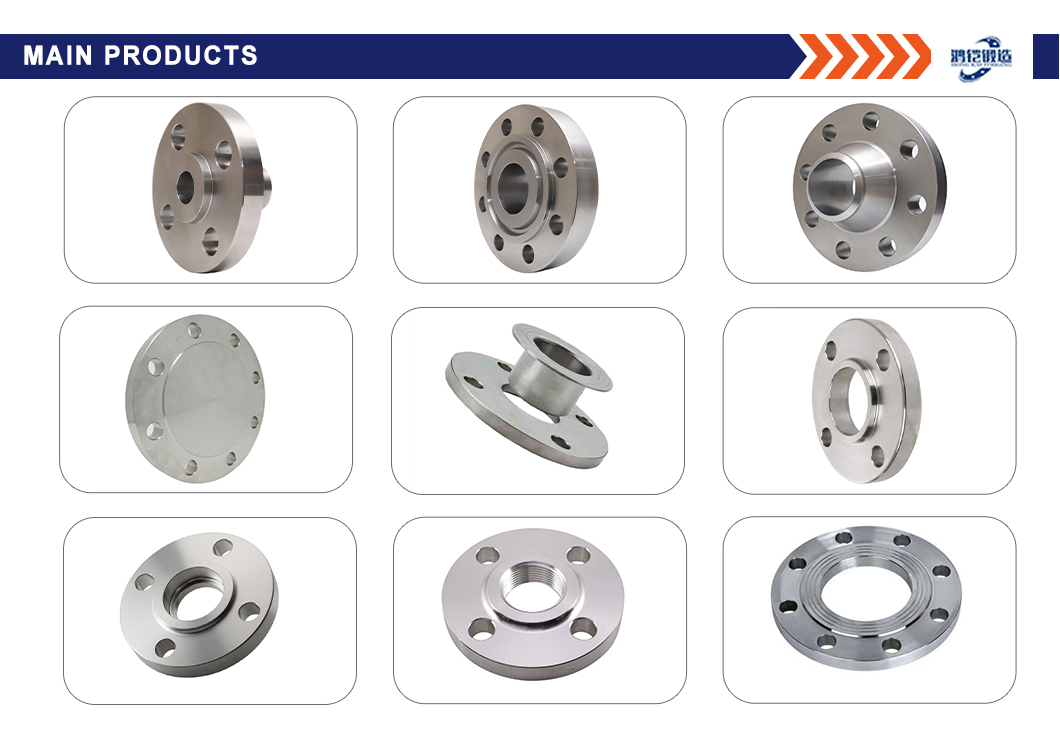

 Here are various weld neck flanges produced by Shanxi HongKai Forging Co., Ltd. You can click on the pictures to enlarge them,Shanxi HongKai Forging Co., Ltd.  supports all types of flange production.

Weld Neck Flange


Weld Neck Flange



ABOUT HongKai

Shanxi HongKai Forging Co., Ltd. was located in Dingxiang County, known as the "Hometown ofForging" in Shanxi Province, which is part of Chinese energy and heavy chemical industrial base. Thearea boasts convenient transportation, abundant coal and power resources, fast communication, and an excellent environment. The company has three big workshops in total.



Along with capabilities in forging and heat treatment,Integrated production capabilities includingmachining, physical and chemical testing, surface treatment, and packaging and shipment. Possessingsolid technical expertise, advanced production processes, and a complete quality inspection, reliableafter-sales service, for customers worldwide and domestically multiple clients have provided a solid foundation for collaboration.



In addition,we can provide a variety of customized flanges and pipefittings.Customers can give drawings or samples,and our company will produce them to fit your specific requirements.

Learn more about  HongKai <<


300+

Number Of Workers


85+

Mid&Senior Engineers


150,000

Square Meters of Area


25+

Years of Experience

Weld Neck Flange

Our Production Line

Our company has8 pipe fitting production lines and 5 flange production lines.It has a full set of medium-frequency elbow hot-pushing     machines,hot-die pressesfor reducers,cold-extrusion hydraulic presses for tees,forging hammers,vertical lathes,drilling machines,and other process-forming and mechanical processing equipment.



Among them,the φ1020 mm large-diameter medium-frequency hydraulic pushing machine,φ1420 mm large-diameter medium-frequency bending machine,and φ2438 mm 4,000-ton large hot-die press have an annual production capacity of more than 80,000 tons.


8

Pipe Fitting Production Lines


5

Flange Production Lines


80,000 tons

Annual Production Capacity



Weld Neck Flange



Quality  Testing  & Certificates

Weld Neck Flange



FAQs

Q:Are You A  Real  Manufacturer?

A:Yes, we are a flange pipe fittings manufacturer located in Cangzhou, Hebei, China. Founded in 2000, we cover an area of ​​150,000 square meters, with a building area of ​​30,000 square meters. We currently have more than 300 employees and are a relatively large and powerful Chinese flange manufacturer.

The company has 8 pipe fittings production lines and 5 flange production lines. It has a full set of medium-frequency elbow hot push machines, reducer hot mold presses, tee cold extrusion hydraulic presses, forging hammers, vertical lathes, drilling machines and other processing and machining equipment. Among them, the φ1020 mm large-diameter medium-frequency hydraulic push machine, φ1420 mm large-diameter medium-frequency bending machine, and φ2438 mm 4,000-ton large-scale hot mold press have an annual production capacity of more than 80,000 tons.

Q:How Long  Is The  Delivery Time?

A:For standard models, our factory has a large inventory, and the delivery time is usually only a few days. For non-standard parts, we also have a large reserve of raw materials and multiple production lines, which will save one-third of the time compared to other manufacturers and ship them to you as soon as possible.

Q:Is  Product  Quality  Guaranteed?

A:We have our own testing system. Each batch of goods will have a corresponding product certificate and quality inspection report. At the same time, we have ISO9001 product quality certification, classification society certificate, ASNE quality certificate and other international authoritative quality certification certificates. We will never ship out unqualified products. In addition, we support customers to entrust third-party inspection companies for inspection and acceptance.

Q:Is  Customization  Available?

A:Of course, you can provide us with drawings or samples for customization, or you can ask us to design and customize your exclusive flange pipe fittings for you.

Q:Can You  Handle  Some  Special  Fields  With  Higher  Demands?

A:Our products are used in oil, gas, chemical industry, machinery, shipbuilding, aerospace, electricity, pharmaceuticals, construction engineering, water conservancy engineering, and marine engineering. Don’t worry about some special fields with high requirements. We have strong production capacity and rich production experience and can provide you with professional solutions. You can send us your working conditions and we can give you a solution for free.

Q:Are  Samples  Available?

A:Our company can provide you with samples for free, you can contact sales to request samples.

Q:Can We Come And Visit Your  Factory?

A:Of course, you are very welcome to visit our factory. We will also arrange meals and accommodation for you. If you have enough time, we can also take you to visit China’s famous mountains and historical sites, so that you can better understand China and our culture. It will be worthwhile and we look forward to seeing you.

Q:Why Choose HongKai?

A:We are the source manufacturer. If you have the strength, you will get more favorable prices, faster delivery and more guarantees if you purchase directly from us. We will have professional sales staff to track customers’ orders throughout the process, update the order status in real time, and let customers know their order progress and product quality in real time.

Q:What  Currencies  Are  Supported  For  Payment?

A:We support payments in over 40 currencies worldwide.

Q:How Are The  Products  Shipped?

A:We have a long-term logistics transportation company that supports sea, land and air transportation to ensure that customers receive the goods on time. At the same time, if customers have a cooperative logistics company, we will still fully cooperate with your logistics company to ensure that customers can receive the goods as soon as possible.
