Nipoflange

Nipoflange- High-Performance Industrial Connection Solution

Shanxi HongKai Forging Co., Ltd. specializes in manufacturing premium Nipoflange products with integrated production capabilities spanning forging, heat treatment, machining, and comprehensive quality testing. Our enterprise-level solutions feature specifications ranging from DN15 to DN4000, pressure ratings up to Class 2500, and compliance with multiple international standards including ASME B16.5, EN1092-1, and DIN. With three department workplaces and free import-export rights, we provide prevalent channeling association arrangements for requesting mechanical applications worldwide.

What is Nipoflange

A Nipoflange is a branch outlet fitting with an integral flange connection and an extended nipple-style outlet body. It is commonly used when a pipeline requires a reinforced branch connection and a detachable flanged connection at the same time.

Compared with a standard welding outlet, a nipoflange provides easier installation for valves, instruments, equipment, or branch pipelines. Compared with a simple flange connection, it offers better branch reinforcement and a more compact structure.

Nipoflanges are widely used in oil and gas, petrochemical, chemical processing, power generation, refinery, and industrial piping systems.

Nipoflange Specifications

Additional Specifications:

• Type: Nipoflange, flanged nipple outlet, reinforced branch outlet
• Connection: Flange connection + branch weld connection
• Face Type: RF, FF, RTJ, customized sealing face
• Outlet Type: Extended nipple outlet body with flange end
• Custom Service: Special OD, ID, thickness, outlet length, flange drilling, sealing face, and material available





Nipoflange Materials & Grades

Nipoflange Dimensions

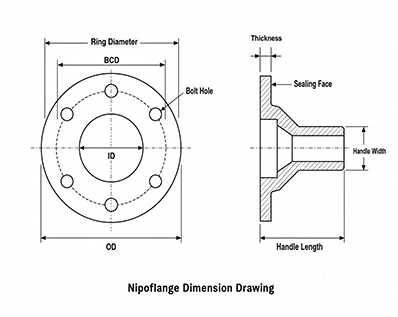

Nipoflange Dimension Drawing

Advantages of Nipoflange

Reinforced Branch Connection

The forged outlet body provides strong reinforcement for branch pipeline connections.

Convenient Flanged End

The flange end allows valves, instruments, or branch pipelines to be connected and removed easily.

Compact Pipeline Design

Nipoflange combines branch outlet and flange connection functions, helping reduce installation space and welding work.

Reliable Sealing Performance

Accurate sealing face machining helps reduce leakage risk in branch pipeline systems.

Multiple Standard Options

Products can be manufactured according to MSS SP-97, ASME, EN, DIN, JIS, and customer drawings.

Wide Material Selection

Carbon steel, stainless steel, alloy steel, duplex steel, nickel alloy, and customized materials are available.

Applications

Oil and Gas Pipelines

Used for reinforced branch connections in oil and gas transmission pipeline systems.

Petrochemical Plants

Suitable for process pipelines requiring flanged branch outlets.

Chemical Processing

Stainless steel and alloy nipoflanges are suitable for corrosive and hazardous media.

Power Generation

Applied in steam, cooling water, fuel gas, and auxiliary pipeline systems.

Refinery Systems

Used for valve connections, instrument connections, and branch pipeline outlets.

Industrial Equipment Connection

Suitable for connecting equipment nozzles, branch pipelines, valves, gauges, and flow instruments.

Why Choose Us

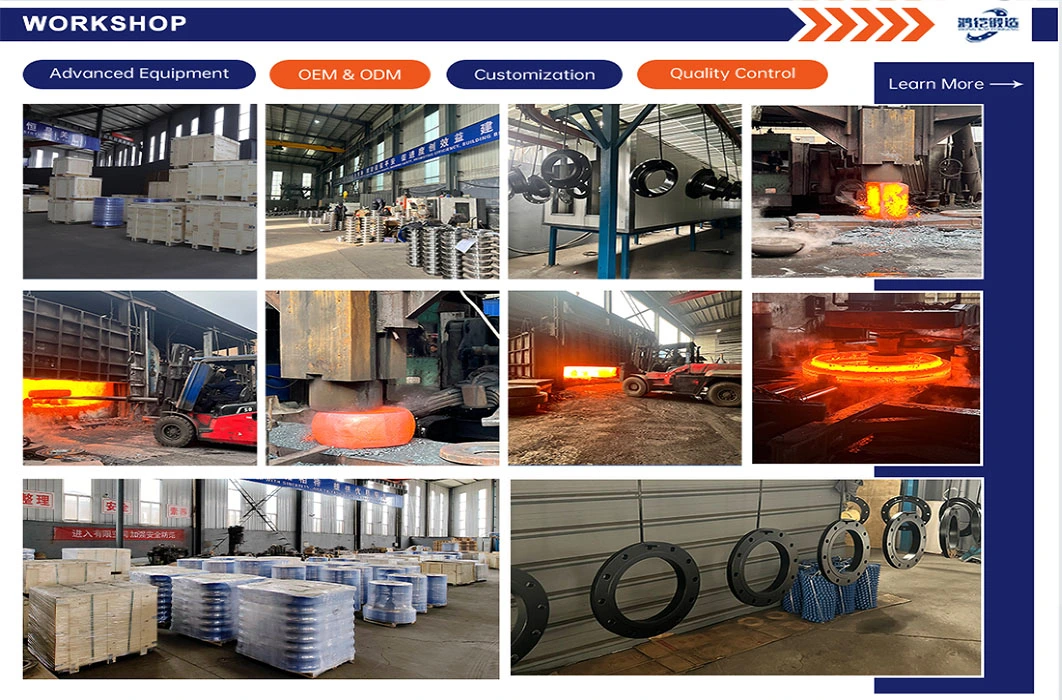

Comprehensive Fabricating Capabilities

We coordinated manufacturing, warm treatment, machining, testing, and bundling beneath one roof. You get steady quality control all through the whole generation process.

International Standards Compliance

Our products meet ASME, EN, DIN, JIS, and GOST standards. You can specify the exact requirements for your regional applications with confidence.

Extensive Estimate Run

From DN15 to DN4000, we cover essentially all mechanical necessities. Your ventures advantage from single-source obtainment convenience.

Quality Affirmation

Progressed testing offices guarantee each product meets details. You get certified items with total traceability documentation.

Global Trade Involvement

Our items serve markets over Europe and the Americas. You work with demonstrated providers who get it worldwide quality expectations.

Competitive Preferences

Prevalent quality, competitive estimating, secure bundling, and quick conveyance combine to back your extend timelines and budgets.

FAQ

Q: What is a Nipoflange?
A: A nipoflange is a reinforced branch outlet fitting with an extended nipple-style body and a flanged connection end.

Q: What is the difference between Nipoflange and Flangeolet?
A: Both provide flanged branch connections. A nipoflange usually has a more obvious nipple-style outlet extension, while a flangeolet is more commonly described as a flanged branch outlet fitting.

Q: Can Nipoflange be customized?
A: Yes. OD, ID, thickness, outlet length, bore size, bolt holes, sealing face, material, and coating can be customized.

Q: What standards are available?
A: MSS SP-97, ASME, EN, DIN, JIS, and customer drawings are available.

Q: Where are Nipoflanges commonly used?
A: They are commonly used in oil and gas, petrochemical, refinery, chemical processing, power generation, and industrial pipeline systems.

Contact Us

Ready to enhance your branch pipeline connections with premium Nipoflange solutions? Contact kevin.zhao@hkflange.com for technical specifications and competitive quotations today.
