Plate Flange
/ Standard Forged Flanges

Plate Flange

Dimensions: DN10, DN15, DN20, DN25, DN50, DN100, DN200, Customized up to DN4000
Material: Carbon Steel, Stainless Steel, Alloy Steel
Thickness: According to standard or customer drawing
Standard: EN 1092-1, DIN, BS, JIS, ANSI, Custom Drawing
Class Range: PN6 to PN40, customized pressure ratings available
Flange Face Type: FF, RF, MFM, TG, RJ
End: Flat plate end
Connection: Welding / Bolted connection
Manufacturing Process: Plate cutting, drilling, machining, surface treatment
Product Description
China Plate flanges Supplier

We provide flange products of various standards, Plate flange is the most common flange, the pressure is PN2.5, PN6, PN10, PN16, PN25.

we supportall ypes of flanges and can give you the best product quality at the most reasonable price.

Qucik Consultation
Customize Flanges
Plate flanges Specitications

Standard

Type

Class

Size

ASME B16.5

WN/LWN/SO/Blind/Lap Joint

150#-2500#

1/2"-24"

ASME B16.47 Series A

WN/blind flange

150#-900#

22"-60"

ASME B16.47 Series B

WN/blind flange

75#400#600#

26"-60"

900#

26"-48"

EN1092-1:2002

Plate flange for welding/loose plate

PN2.5-PN100

DN10-DN4000

flange with weld-on plate collar or

for lapped pipe end/Blind/WN flange

JIS B2220

Welding Flange,Lap joint flange,threaded flange

PN6-PN100

DN10-DN1500

BS4504 BS10 TableD/E

Plate Flange for welding/WN flange/Blank Flange

PN6-PN100

DN10-DN1500

Sealing Surface

RF,FF,MFM,TG,RJ

Coating

Vanish,yellow paint,anti-rust oil,galvanizing etc

Plate flanges Materials & Grades

Plate flanges are available in various materials to meet different industrial requirements. The material selection depends on the working pressure, temperature, operating environment, and pipeline medium.

Carbon steel is commonly used for plate flanges due to its good mechanical properties and cost-effectiveness. Stainless steel provides excellent corrosion resistance, while alloy steel and duplex stainless steel are suitable for specific demanding applications.

Common materials include carbon steel, stainless steel, alloy steel, and duplex stainless steel. Material specifications can be selected according to applicable standards and customer requirements.

 duplex steel materials to meet the technical requirements of various pipelines of customers.The following table shows the grades of these common materials:

Nominal dimension

Steel pipe outer diameter

Connection dimensions

Flange thickness

Flange inner diameter

DN

A

B

Flange outer diameter (D)

Fentral circle diameter (K)

Bolt hole diameter (L)

Number of bolt holes (n)

Bolt (Th)

C

A

B

10

17.2

14

75

50.0

11

4

M10

12.0

18.0

15.0

15

21.3

18

80

55.0

11

4

M10

12.0

22.5

19.0

20

26.9

25

90

65.0

11

4

M10

14.0

27.5

26.0

25

33.7

32

100

75.0

11

4

M10

14.0

34.5

33.0

32

42.4

38

120

90.0

14

4

M12

16.0

43.5

39.0

40

48.3

45

130

100.0

14

4

M12

16.0

49.5

46.0

50

60.3

57

140

110

14

4

M12

16

61.5

59

65

76.1

76

160

130.0

14

4

M12

16.0

77.5

78.0

80

88.9

89

190

150.0

18

4

M16

18.0

90.5

91.0

100

114.3

108

210

170.0

18

4

M16

18.0

116.0

110.0

125

139.7

133

240

200.0

18

8

M16

20.0

143.5

135.0

150

168.3

159

265

225.0

18

8

M16

20.0

170.5

161.0

200

219

219

320

280.0

18

8

M16

22.0

221.5

222.0

250

273.0

273

375

335.0

18

12

M16

24.0

276.5

276.0

300

323.9

325

440

395.0

22

12

M20

24.0

328.0

328.0

350

355.6

377

490

445.0

22

12

M20

26.0

360.0

381.0

400

406.4

426

540

495

22

16

M20

28

411

430

450

457

480

595

550.0

22

16

M20

30.0

462.0

485.0

500

508

530

645

600.0

22

20

M20

30.0

513.5

535.0

600

610

630

755

705.0

26

20

M24

32

616.5

636

700

711.0

720

860

810.0

26

24

M24

36.0

715.0

724.0

800

813

820

975

920.0

30

24

M27

38.0

817.0

824.0

900

914

920

1075

1020.0

30

24

M27

40.0

918.0

924.0

1000

1016

1020

1175

1120.0

30

28

M27

42.0

1020.0

1024.0

1200

1219

1220

1375

1320.0

30

32

M27

44.0

1223.0

1224.0

1400

1422

1420

1575

1520.0

30

36

M27

48.0

1426.0

1424.0

1600

1626

1620

1790

1730.0

30

40

M27

51.0

1630.0

1624.0

1800

1829

1820

1990

1930.0

30

44

M27

54.0

1833.0

1824.0

2000

2032

2020

2190

2130.0

30

48

M27

58.0

2036.0

2024.0

Plate flanges Dimensions

Below we have listed some sizes of Weld Neck Flanges(Class 150)under ASME B16.5(1/2“to 24”)

Plate Flange




  • DN15 Plate Flange is available in different pressure ratings. Its outside diameter, inside diameter, and thickness are determined according to the applicable flange standard.
  • DN25 Plate Flange is manufactured with standardized bolt hole arrangements, including bolt circle diameter and bolt hole dimensions.
  • DN50 Plate Flange is commonly used in industrial pipeline connections. Its main dimensions vary according to the selected PN rating.
  • DN80 Plate Flange is available with different flange thicknesses, outside diameters, and bolt configurations to meet pipeline requirements.
  • DN100 Plate Flange is manufactured according to applicable standards, with dimensions based on nominal diameter and pressure rating.
  • DN150 Plate Flange provides reliable pipeline connections and is available in different materials and sealing surface configurations.
  • DN200 Plate Flange is suitable for medium and large pipeline systems, with customized dimensions available according to customer requirements.
  • DN300 Plate Flange can be supplied according to EN 1092-1 and other applicable standards, depending on the required specifications.



Standardized Plate flanges
  • Plate flanges are manufactured according to international standards, including EN 1092-1, BS 4504, and other applicable specifications.
  • Available flange types include plate flanges for welding and loose plate flanges, depending on the applicable standard.
  • Pressure ratings, dimensions, and material requirements vary according to the selected standard, nominal diameter, and customer specifications.
Standard Flange Type Pressure Rating Size Range
EN 1092-1 Type 01 Plate Flange / Type 02 Loose Plate Flange PN2.5–PN100 DN10–DN4000
BS 4504 Plate Flange for Welding According to applicable specification According to applicable specification
BS 10 Plate Flange for Welding Table D / Table E According to applicable specification
Customized Plate flanges  Process


Raw Materials

Raw material inspection by heat number; Chemical composition inspection.

Cutting

Material identification; Production flow card.

Heating

Material identification; Furnace temperature monitoring; Heating temperature control.

Forging & Ring Rolling

Semi-finished size inspection; Visual inspection.

Rough Machining

Dimensional inspection; Ultrasonic Testing (UT).

Heat Treatment

Heat treatment records and charts; Furnace condition inspection; Hardness testing; Chemical composition and mechanical property inspection.

Finish Machining

Visual inspection; Dimensional inspection of 50% of products; Production flow card.

Finished Goods Inspection

Positive Material Identification (PMI); Marking inspection; Dimensional inspection.

Packing

Packaging inspection; Visual inspection.

Shipment

Shipment according to customer requireme

Customize It Now  Free Consulting

 More reading:

  • What Are Plate Flanges and Their Main Applications
  • Plate Flange Dimensions and Pressure Ratings
  • How Plate Flanges Are Manufactured

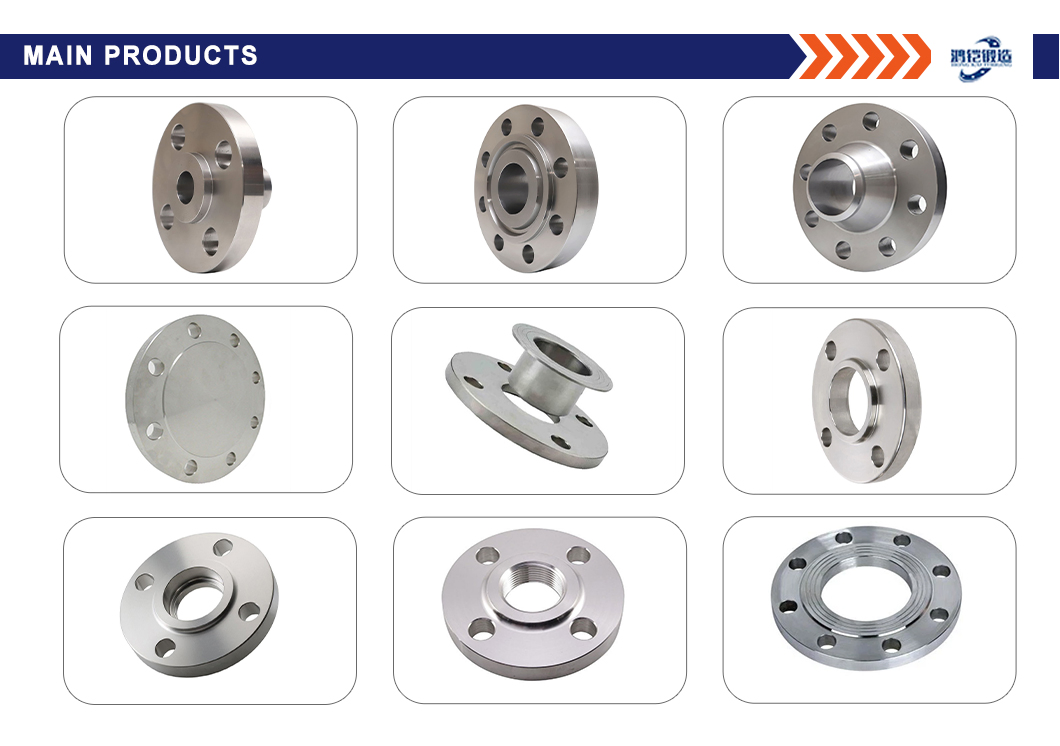

Image Gallery

 Here are various Plate Flanges produced by Shanxi HongKai Forging Co., Ltd. You can click on the pictures to enlarge them,Shanxi HongKai Forging Co., Ltd.  supports all types of flange production.

Plate Flange


Weld Neck Flange



ABOUT HongKai

Shanxi HongKai Forging Co., Ltd. was located in Dingxiang County, known as the "Hometown ofForging" in Shanxi Province, which is part of Chinese energy and heavy chemical industrial base. Thearea boasts convenient transportation, abundant coal and power resources, fast communication, and an excellent environment. The company has three big workshops in total.



Along with capabilities in forging and heat treatment,Integrated production capabilities including machining, physical and chemical testing, surface treatment, and packaging and shipment. Possessing solid technical expertise, advanced production processes, and a complete quality inspection, reliable after-sales service, for customers worldwide and domestically multiple clients have provided a solid foundation for collaboration.



In addition, we can provide a variety of bespoke flanges and pipe fittings. Customers can give drawings or samples, and our company will produce them to fit your specific requirements.

Learn more about  HongKai <<


300+

Number Of Workers


85+

Mid&Senior Engineers


150,000

Square Meters of Area


25+

Years of Experience

Plate Flange

Our Production Line

Our company has 8 pipe fitting production lines and 5 flange production lines. It has a full set of medium-frequency elbow hot-pushing machines, hot-die presses for reducers, cold-extrusion hydraulic presses for tees, forging hammers, vertical lathes, drilling machines, and other process-forming and mechanical processing equipment.



Among them, the Φ1020 mm large-diameter medium-frequency hydraulic pushing machine, Φ1420 mm large-diameter medium-frequency bending machine, and Φ2438 mm 4,000-ton large hot-die press have an annual production capacity of more than 80,000 tons.


8

Pipe Fitting Production Lines


5

Flange Production Lines


80,000 tons

Annual Production Capacity



Plate Flange



Quality  Testing  & Certificates

Plate Flange



FAQs

Q:What is a plate flange used for?

A:Plate flanges are commonly used to connect pipes, valves, and other equipment in low-pressure applications. They provide a flat, strong connection that can be easily assembled and disassembled, making them ideal for industries like water treatment, oil and gas, and HVAC systems.

Q:What materials are your plate flanges made from?

A:Our plate flanges are typically made from (Duplex) stainless steel including 304, 304L, 316L, 2507, 2205, TP310S, TP321

Q:How are plate flanges installed?

A:Plate flanges are installed by welding them to the end of a pipe, then bolting them to another flange or piece of equipment. The flat surface of the flange ensures a tight seal, and gaskets are often used to enhance the seal between flanges.

Q:What standards do your plate flanges comply with?

A:Our stainless steel plate flanges comply with GB/T9119, DIN 2576, and GOST 12820 standards. Plate flanges are the most common flange type in DIN and GOST markets for low-pressure applications.

Q:What pressure ratings are available?

A:Our plate flanges cover PN2.5 through PN25 as standard.

Q:What is the lead time and MOQ?

A:MOQ starts from 1 piece for standard sizes. Lead time depends on size, quantity, and material — we confirm the exact delivery schedule in your quotation. Factory-direct quotes are provided within 24 hours.

Fast Response

Clear Communication, and Reliable Technical Support
