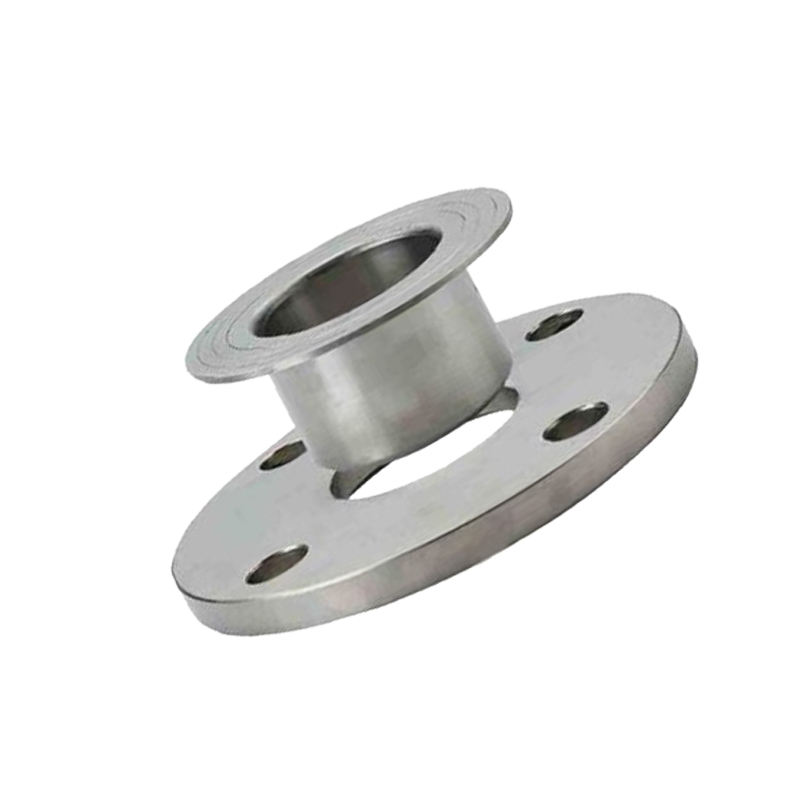

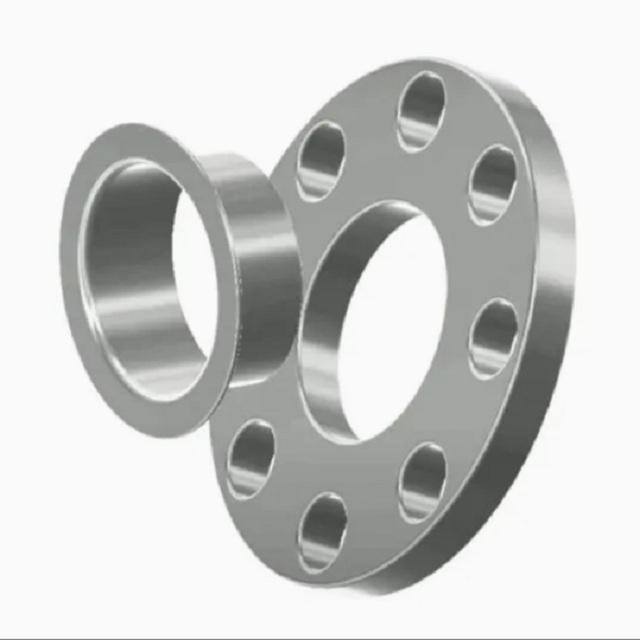

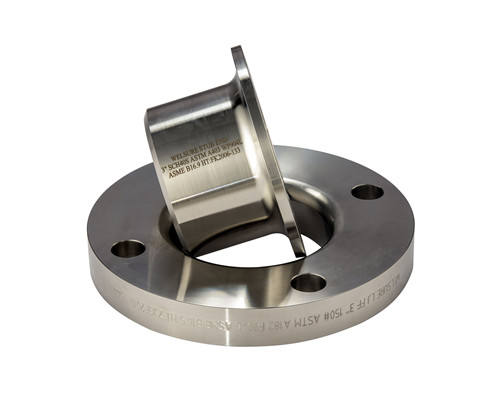

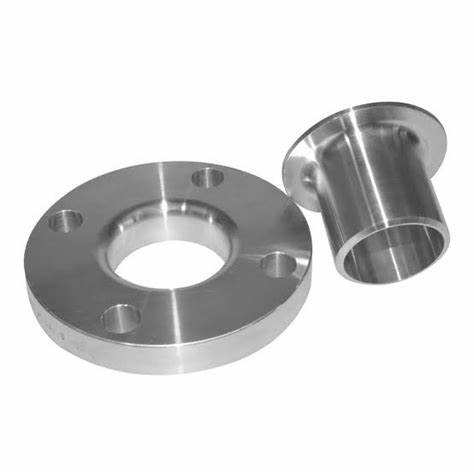

Lap Joint Flange
/ Standard Forged Flanges

Lap Joint Flange

Dimensions: 1/2”, 2”, 3”, 4”, 6”, 8”, 10”, Customized up to 60”
Material: Carbon, Alloy and Stainless Steel
Thickness: Schedule 10(S) to SCH 160
Standard: ASME, ANSI, DIN, JIS, EN, etc
Class Range: Class 150 to 2500 (# or LB). PN 2.5 to PN 250.
Flange Face Type: RF, FF, MFM, TG, RJ
Connection: Butt weld, Plug welding
Manufacturing Process: Forging
Product Description
China Lap Joint Flanges Supplier

We provide flange products of various standards, such as ASME/ANSI B16.47,B16.5,EN,DIN,IS standards,etc.We also provide customized Lap Joint Flanges products.

we supportall ypes of flanges and can give you the best product quality at the most reasonable price.

Qucik Consultation
Customize Flanges
Lap Joint Flange Specitications
Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500# 1/2″-24″
ASME B16.47 Series A WN/blind flange 150# -900# 22″-60″
ASME B16.47 Series B WN/blind flange 75# 400# 600# 26″-60″
900# 26″-48″
EN1092-1:2002 Plate flange for welding/loose plate PN2.5-PN100 DN10-DN4000
flange with weld-on plate collar or
for lapped pipe end/Blind/WN flange
JIS B2220 Welding Flange, Lap joint flange, threaded flange PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E Plate Flange for welding/WN flange/Blank Flange PN6-PN100 DN10-DN1500
Sealing Surface RF, FF, MFM, TG, RJ
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Lap Joint Flanges Materials & Grades

Lap joint flanges are available in a variety of materials. These materials must meet the standards. The material should also meet the quality specified by ASTM or ASME standards. The thickness and inner diameter of the flange depend on the size of the pipe for which this Lap joint flanges is manufactured.

Carbon steel flanges are commonly used manufacturing materials for Lap joint flanges. You can choose the appropriate material according to the medium of the pipeline. You can choose ASTM A105 for normal temperature, ASTM A350 for low temperature, and ASTM A694 for high temperature.

Flanges are available in a variety of grades, such as ASME B16 5, ASME B16 47 “A” series and “B” series to meet the needs of customers and industries.

In addition to this material, Lap joint flanges are also available in stainless steel and alloy steel, which have material properties such as corrosion resistance, high temperature resistance, and wear resistance. At the same time, we also have duplex steel materials to meet the technical requirements of various pipelines of customers. The following table shows the grades of these common materials:

Material Grade
Carbon Steel ASTM A105, 20#, Q235, 16Mn, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70
Alloy Steel ASTM A182 F1, F5a, F9, F11, F12, F22, F91, A182F12, A182F11, 16MnR, Cr5Mo, 12Cr1MoV, 15CrMo, 12Cr2Mo1, A335P22, St45.8/Ⅲ;
Stainless Steel ASTM A182 F304, 304L, F316, 316L, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 321, 18-8;
Duplex and Super Duplex ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61,
S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950
Nickel Alloy Steel ASTM/ASME B/SB151 UNS N07060, 71500, C70600 (CuNi 90/10), C71500 (CuNi 70/30)
UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600), UNS N06601(INCONEL 601),
UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276)
ASTM/ASME B/SB151 UNS N07060, 71500, C70600 (CuNi 90/10), C71500(CuNi 70/30)
Copper Alloy ASTM/ASME B/SB151 UNS N07060, 71500, C70600 (CuNi 90/10), C71500 (CuNi 70/30)
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7
​​​​​​​

Lap Joint Dimensions

Below we have listed some sizes of Lap Joint Flanges (Class 150) under ASME B16.5 (1/2″ to 24″)

Lap Joint Flange

  • 1/2″ NPS flange has an inner diameter of 0.90″ and an outer diameter of 3.50″. The raised face thickness is 0.62″ and has 4 bolt holes.
  • 3/4″ NPS flange has an inner diameter of 1.11″ and an outer diameter of 3.88″. The raised face thickness is 0.62″ with 4 bolt holes.
  • 1″ NPS flange has an inner diameter of 1.38″ and an outer diameter of 4.25″. The raised face thickness is 0.69″ and the standard bolt holes are 4 numbers.
  • 2″ NPS flange has an inner diameter of 2.46″ and an outer diameter of 6.00″. The raised face thickness is 1.00″ and the flange has 4 bolt holes.
  • 5″ NPS flange has an inner diameter of 5.69″ and an outer diameter of 10.00″. The raised face thickness is 1.44″, and it has 8 bolt holes.
  • 6″ NPS flange has an inner diameter of 6.75″ and an outer diameter of 11.00″. The raised face thickness is 1.56″, and it has 8 bolt holes.
  • 10″ NPS flange has an inner diameter of 10.92″ and an outer diameter of 16.00″. The raised face thickness is 1.94″, and it has 12 bolt holes.
  • 20″ NPS flange has an inner diameter of 20.25″ and an outer diameter of 27.50″. The raised face thickness is 4.06″, and it has 20 bolt holes.
  • 24″ NPS flange has an inner diameter of 24.25″ and an outer diameter of 32.00″. The raised face thickness is 4.38″, and it has 20 bolt holes.

                        ASME B16.5 Class 150 Flanges | Lap Joint

Customized Lap Joint Flanges Process


Raw Materials

Raw material inspection by heat number; Chemical composition inspection.

Cutting

Material identification; Production flow card.

Heating

Material identification; Furnace temperature monitoring; Heating temperature control.

Forging & Ring Rolling

Semi-finished size inspection; Visual inspection.

Rough Machining

Dimensional inspection; Ultrasonic Testing (UT).

Heat Treatment

Heat treatment records and charts; Furnace condition inspection; Hardness testing; Chemical composition and mechanical property inspection.

Finish Machining

Visual inspection; Dimensional inspection of 50% of products; Production flow card.

Finished Goods Inspection

Positive Material Identification (PMI); Marking inspection; Dimensional inspection.

Packing

Packaging inspection; Visual inspection.

Shipment

Shipment according to customer requireme
