Weldoflange- High-Performance Industrial Connection Solution

Shanxi HongKai Forging Co., Ltd. specializes in manufacturing premium Weldoflange products" target="_blank">products with integrated production capabilities spanning forging, heat treatment, machining, and comprehensive quality testing. Our enterprise-level solutions feature specifications ranging from DN15 to DN4000, pressure ratings up to Class 2500, and compliance with multiple international standards including ASME B16.5, EN1092-1, and DIN. With three department workplaces and free import-export rights, we provide prevalent channeling association arrangements for requesting mechanical applications worldwide.

What is Weldoflange

A Weldoflange is a special branch outlet fitting that combines a welded branch outlet and a flange connection into one integrated component.

Compared with a standard weldolet, a weldoflange provides a ready-to-use flanged end for bolted connection. Compared with using a separate weldolet plus flange, it can reduce welding work, installation space, and alignment problems.

Weldoflanges are commonly used for connecting valves, instruments, branch pipelines, and equipment nozzles to main pipelines.

Weldoflange Specifications

Additional Specifications:

• Type: Weldoflange, flanged branch outlet, reinforced weld outlet
• Connection: Welded branch connection + flanged end
• Face Type: RF, FF, RTJ, customized sealing face
• Outlet Type: Reinforced welded outlet body with flange end
• Custom Service: Special OD, ID, thickness, outlet length, flange drilling, sealing face, and material available





Weldoflange Materials & Grades

Weldoflange Dimensions

Weldoflange Dimension Drawing

Advantages of Weldoflange

Integrated Branch and Flange Design

Weldoflange combines the reinforced branch outlet and flange connection into one compact component.

Reduced Welding Work

Compared with using a separate outlet fitting and flange, weldoflange can reduce welding operations and installation time.

Convenient Bolted Connection

The flange end allows valves, instruments, equipment, or branch pipelines to be installed and removed easily.

Reliable Sealing Performance

Accurate sealing face machining helps reduce leakage risk in branch pipeline systems.

Strong Reinforced Structure

The forged outlet body provides reliable reinforcement for branch connections under pressure and temperature changes.

Multiple Standard Options

Products can be manufactured according to MSS SP-97, ASME, EN, DIN, JIS, and customer drawings.

Applications

Oil and Gas Pipelines

Used for reinforced branch connections in oil and gas transmission pipeline systems.

Petrochemical Plants

Suitable for process pipelines requiring flanged branch outlets and stable sealing performance.

Chemical Processing

Stainless steel and alloy weldoflanges are suitable for corrosive and hazardous media.

Power Generation

Applied in steam, cooling water, fuel gas, and auxiliary pipeline systems.

Refinery Systems

Used for valve connections, instrument connections, and branch pipeline outlets.

Industrial Equipment Connection

Suitable for connecting equipment nozzles, branch pipelines, gauges, valves, and flow instruments.

Why Choose Us

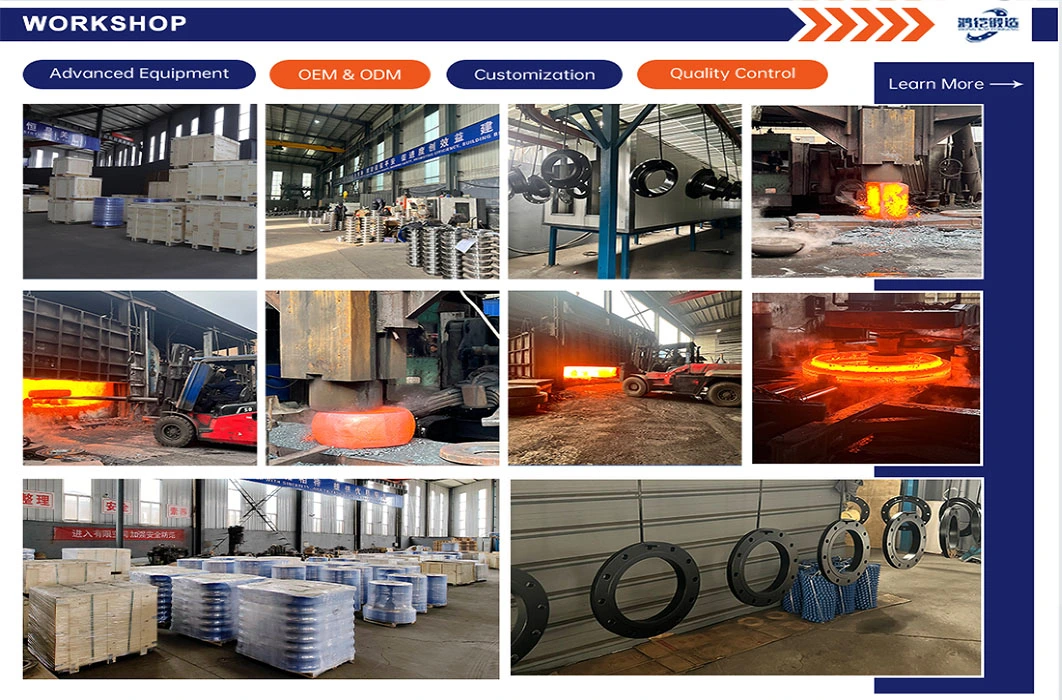

Comprehensive Fabricating Capabilities

We coordinated manufacturing, warm treatment, machining, testing, and bundling beneath one roof. You get steady quality control all through the whole generation process.

International Standards Compliance

Our products meet ASME, EN, DIN, JIS, and GOST standards. You can specify the exact requirements for your regional applications with confidence.

Extensive Estimate Run

From DN15 to DN4000, we cover essentially all mechanical necessities. Your ventures advantage from single-source obtainment convenience.

Quality Affirmation

Progressed testing offices guarantee each product meets details. You get certified items with total traceability documentation.

Global Trade Involvement

Our items serve markets over Europe and the Americas. You work with demonstrated providers who get it worldwide quality expectations.

Competitive Preferences

Prevalent quality, competitive estimating, secure bundling, and quick conveyance combine to back your extend timelines and budgets.

FAQ

Q: What is a Weldoflange?
A: A weldoflange is a reinforced branch outlet fitting with an integral flange connection end.

Q: What is the difference between Weldoflange and Weldolet?
A: A weldolet usually has a welding outlet end, while a weldoflange has a flange end for bolted connection.

Q: What is the difference between Weldoflange and Nipoflange?
A: Both are flanged branch outlet fittings. Weldoflange emphasizes welded branch reinforcement, while nipoflange usually refers to a nipple-style outlet body with a flange end.

Q: Can Weldoflange be customized?
A: Yes. OD, ID, thickness, outlet length, bore size, bolt holes, sealing face, material, and coating can be customized.

Q: What standards are available?
A: MSS SP-97, ASME, EN, DIN, JIS, and customer drawings are available.

Contact Us

Ready to enhance your branch pipeline connections with premium Weldoflange solutions? Contact kevin.zhao@hkflange.com for technical specifications and competitive quotations today.
